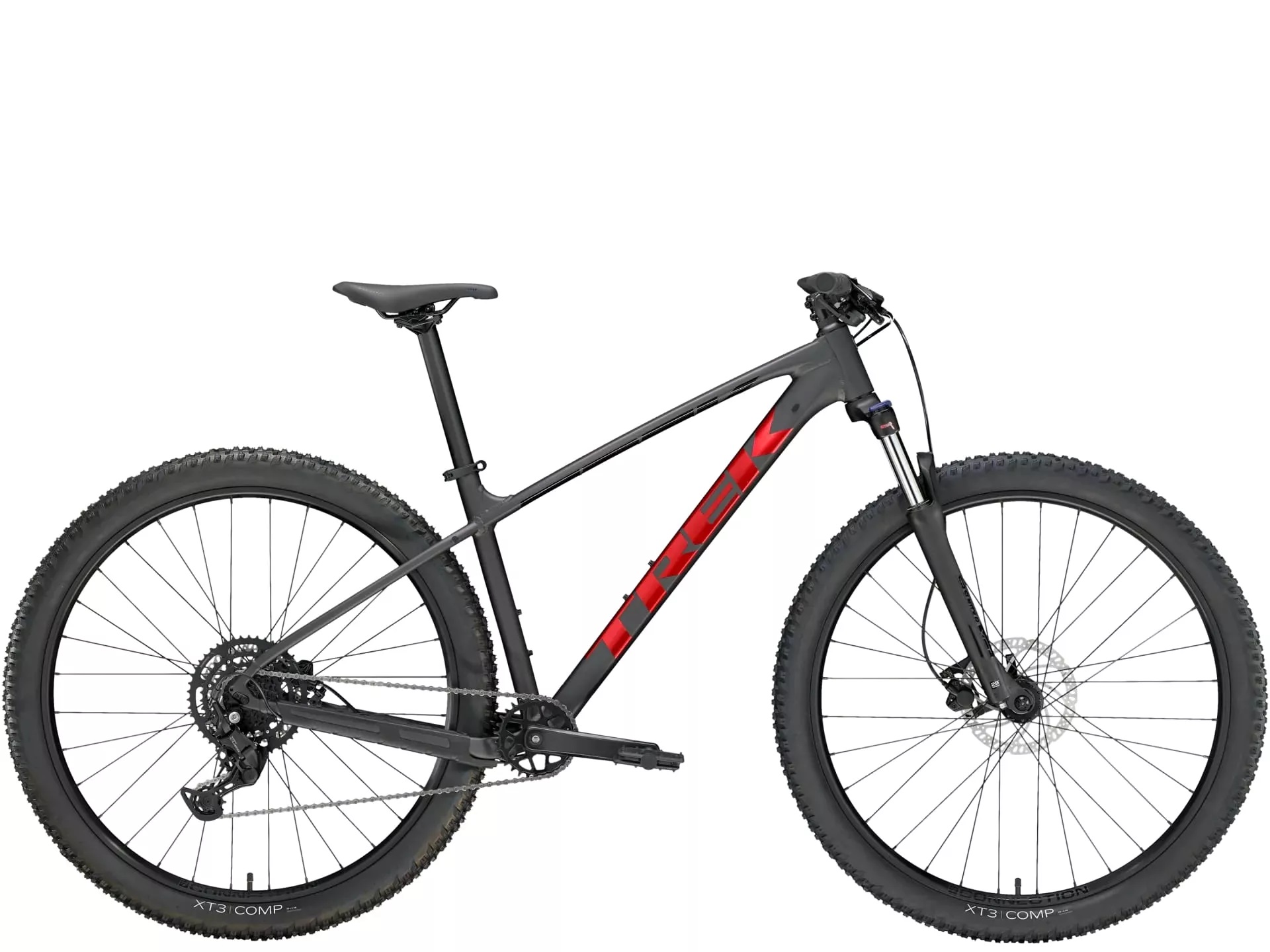

Trek Marlin 5 Gen 3 (Black)
$799.99
In stock
In stock
Description
Marlin 5 is a trail-worthy daily rider that’s perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
It’s right for you if…
You’re new to the trail and you’re looking for a real mountain bike that doubles as a commuter — and you want it all at an exceptional value.
The tech you get
A lightweight aluminum frame with internal routing to protect your cables and add to the bike’s sleek look, an upgraded 9-speed Shimano CUES drivetrain, a wide range of gearing so you always have the right gear for your terrain, powerful hydraulic disc brakes, and a terrain-smoothing suspension fork with a lockout.
The final word
Marlin 5 is a great ride for all your adventures. It’s also versatile and a popular ride on college campuses because the rack and kickstand mounts make it easy to accessorize and haul a load.
*Please note – spec applies to all sizes unless listed separately
Frameset
| *Frame | Size: XS Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |
|---|---|
| Size: S , M , ML , L , XL Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew | |
| *Fork | Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5” wheel, 100mm QR, 80mm travel |
| Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5” wheel, 100mm QR, 100mm travel | |
| Size: M , ML , L , XL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29” wheel, 100mm QR, 100mm travel | |
| Max compatible fork travel | 120mm, XXS: 80mm |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Skewer rear | 173x5mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve |
| Spokes | 14g stainless steel, black |
| *Tire | Size: XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5×2.40” |
| Size: M , ML , L , XL Bontrager XT3 Comp, wire bead, 30 tpi, 29×2.40” | |
| Max tire size | Frame: 29×2.40″ (XXS: 26×2.40″, XS & S: 27.5×2.40″), Fork: See manufacturer |
Drivetrain
| Shifter | Shimano U4000, 9 speed |
|---|---|
| Rear derailleur | Shimano CUES U4000 |
| *Crank | Size: XS Prowheel C10Y-NW, 30T steel narrow-wide ring, 160mm length |
| Size: S , M , ML Prowheel C10Y-NW, 30T steel narrow-wide ring, 170mm length | |
| Size: L , XL Prowheel C10Y-NW, 30T steel narrow-wide ring, 175mm length | |
| Bottom bracket | VP BC73, 73mm, threaded cartridge |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9 speed |
| Chain | Shimano LG500, 9/10/11 speed |
| Pedal | VP-536 nylon platform |
| Max chainring size | 1x: See FAQ, 2x: 36T, 3x: 42T |
Components
| *Seatpost | Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
|---|---|
| Size: ML , L , XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length | |
| *Handlebar | Size: XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
| Size: S Bontrager alloy, 31.8mm, 15mm rise, 720mm width | |
| Size: M , ML , L , XL Bontrager alloy, 31.8mm, 15mm rise, 750mm width | |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem | Size: XS , S Bontrager Comp, 31.8mm, 7 degree, 35mm length |
| Size: M , ML , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length | |
| Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length | |
| Headset | Semi-integrated, 1-1/8” |
| Brake rotor | Tektro, 6-bolt, 160mm |
| *Brake Set | Size: XS , S Tektro HD-M276 hydraulic disc, short reach |
| Size: M , ML , L , XL Tektro HD-M275 hydraulic disc | |
| Rotor size | Max brake rotor sizes – Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
Weight
| Weight | M – 15.10 kg / 33.29 lbs (with tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
