Marlin 5 is a trail-worthy daily rider that’s perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

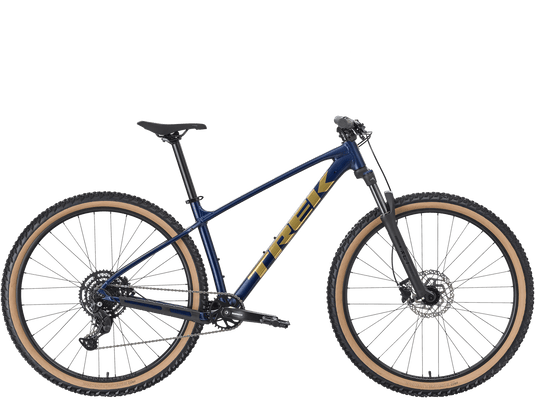

Trek Marlin 5 Gen 3 (Mulsanne Blue)
$849.99
In stock
In stock
Description
- *Frame
- Size:Â XSAlpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkewSize:Â S , M , ML , L , XL , XXLAlpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
- *Fork
- Size:Â XSSR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5” wheel, 100 mm QR, 80 mm travelSize:Â SSR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5” wheel, 100 mm QR, 100 mm travelSize:Â M , ML , L , XL , XXLSR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29” wheel, 100 mm QR, 100 mm travel
- Hub front
- Formula DC-20, alloy, 6-bolt, 100x5mm
- Skewer front
- Hub rear
- Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
- Skewer rear
- Rim
- Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
- Spokes
- 14g stainless steel, black
- *Tire
- Size:Â XS , SBontrager Montrose Comp, wire bead, 30 tpi, 27.5×2.4”Size:Â M , ML , L , XL , XXLBontrager Montrose Comp, wire bead, 30 tpi, 29×2.4”
- Max tire size
- Frame: 29×2.40″ (XXS: 26×2.40″, XS & S: 27.5×2.40″), Fork: See manufacturer
- Shifter
- Shimano U4000, 9 speed
- Rear derailleur
- Shimano CUES U4000
- *Crank
- Size:Â XS , S , M , MLShimano CUES U4001, 32T, 52mm chainline, 170mm lengthSize:Â L , XL , XXLShimano CUES U4001, 32T, 52mm chainline, 175mm length
- Bottom bracket
- Shimano, 73mm, threaded cartridge, 122.5mm spindle
- Cassette
- Shimano LINKGLIDE LG300, 11-46, 9 speed
- Chain
- Shimano LG500, 9/10/11 speed
- Pedal
- Max chainring size
- 1x: See FAQ, 2x: 36T, 3x: 42T
- Saddle
- *Seatpost
- Size:Â XS , S , MBontrager alloy, 31.6mm, 12mm offset, 330mm lengthSize:Â ML , L , XL , XXLBontrager alloy, 31.6mm, 12mm offset, 400mm length
- *Handlebar
- Size:Â XSBontrager alloy, 31.8mm, 5mm rise, 690mm widthSize:Â SBontrager alloy, 31.8mm, 15mm rise, 720mm widthSize:Â M , ML , L , XL , XXLBontrager alloy, 31.8mm, 15mm rise, 750mm width
- Grips
- *Stem
- Size:Â XS , SBontrager Comp, 31.8mm, 7 degree, 35mm lengthSize:Â M , ML , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length - Headset
- *Brake rotor
- Size:Â XS , S , M , ML , L , XL , XXLShimano RT26, 6-bolt, 160mmSize:Â M , ML , L , XL , XXLShimano RT26, 6-bolt, 180mm
- Brake Set
- Rotor size
- Max brake rotor sizes – Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer
- Weight
- M – 15.10 kg / 33.29 lbs
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
